Double Platinum

Autolite® Double Platinum Spark Plugs

Better materials to give your engine better performance. Platinum-to-platinum design greatly decreases gap erosion, reduces misfires, and provides improved durability.* It's the superior-performing spark plug, providing preferred technology for DIS engines. Guaranteed for 5 years.**

*Compared to standard plugs

**See warranty details

Find Store

Parts Finder

Save Product

FEATURES & BENEFITS

Platinum-to-platinum firing for superior durability
Super conductive Yttrium enhanced ground electrode provides superior heat transfer
Platinum enhanced high nickel alloy side electrode maintains precision gap
Platinum tip assures virtually no gap erosion for longer plug life
Maintains optimum performance and fuel economy longer
5-year limited warranty

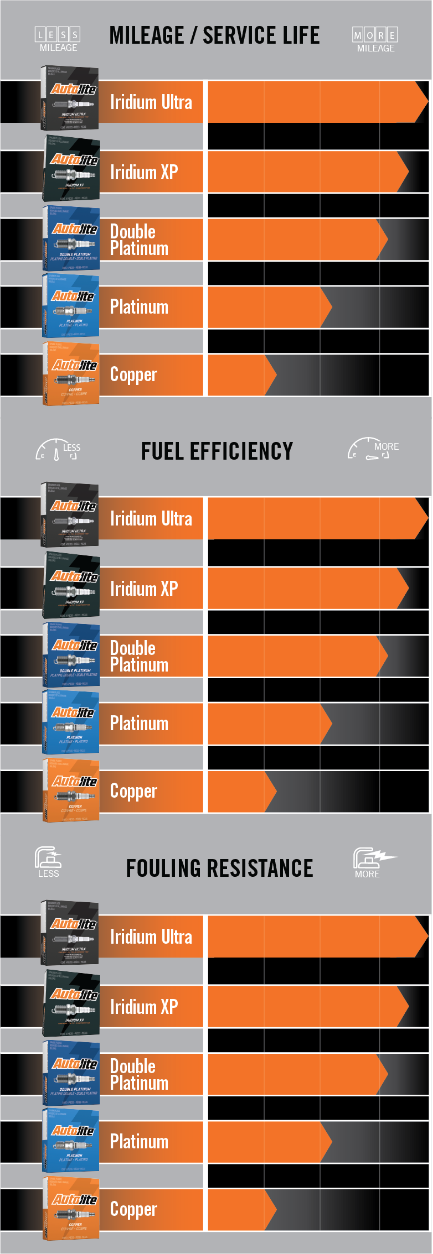

Click on the link below to check out our Spark Plug Metallurgy Comparison Chart.

Compare Now

INSTRUCTIONS

Autolite highly recommends that you consult with your vehicle’s owner’s manual for any specific instructions for changing the spark plugs. Engines can vary widely by make and model. These instructions should be considered for general guidance only.
Replacing spark plugs can be a simple job, if you take things one step at a time. Given a basic understanding of mechanical matters, here's a guide to the proper procedures in changing spark plugs.

Coil-on Plug

Unplug and remove ignition coils. Inspect coil boots for cracking or oil staining. If you have oil in the spark plug wells or on the boots, the valve cover gasket is leaking and must be replaced.
Loosen each spark plug so it can be removed. Clean the seat area with a blast of compressed air or with a shop vac, use proper PPE. This prevents dirt from falling into the combustion chamber when the old plugs are removed.
Remove the plugs and line them up in cylinder order. Inspection of the firing ends of the plugs can identify a number of engine problems that may need correction. (illus. 3)
Check and set the gap on new plugs as recommended in your owner's manual or a Spark Plug Catalog. Use a round feeler gauge to measure the gap between the center and ground electrode. The gauge should pass through snugly but easily. If it's too loose or too tight, reset the gap.
Screw new plugs in by hand until tight. Use a torque wrench to tighten the spark plugs following the manufacturer's recommendations, or refer to a torque chart in the Spark Plug Catalog. If you don't have a torque wrench, see the bottom of the torque chart for hand tightening recommendations.
Replace the coils Before installing the coils, put a small amount of dielectric grease inside the spark plug boot. Check to see if the boots are brittle or cracked, and if there is corrosion on the connector inside the boot. If any of these conditions are present, the spark plug boots should be replaced.
Start the engine. If it misfires or idles roughly, the wires are crossed or not connected to the plugs correctly. Check the firing order and connections closely.

If you have any questions regarding your Autolite spark plugs, call Autolite Answers(SM) to consult with one of our technicians. Autolite Answers 855-200-5200

Distributorless Ignition System (DIS)

Carefully remove the spark plug wires. Grasp the plug wire boot, twist about one-quarter turn to break the seal, then lift straight off. Use plug boot pullers if the boot doesn't break free easily. Number plug wires with tape as you remove them to avoid crossing them. (illus. 1)
Loosen each spark plug so it can be removed. Clean the seat area with a blast of compressed air or with a shop vac, use proper PPE. This prevents dirt from falling into the combustion chamber when the old plugs are removed. (illus. 2)
Remove the plugs and line them up in cylinder order. Inspection of the firing ends of the plugs can identify a number of engine problems that may need correction. (illus. 3)
Check and set the gap on new plugs as recommended in your owner's manual or a Spark Plug Catalog. Use a round feeler gauge to measure the gap between the center and ground electrode. The gauge should pass through snugly but easily. If it's too loose or too tight, reset the gap.
Screw new plugs in by hand until tight. . Use a torque wrench to tighten the spark plugs following the manufacturer's recommendations, or refer to a torque chart in the Spark Plug Catalog. If you don't have a torque wrench, see the bottom of the torque chart for hand tightening recommendations.
Replace spark plug wires in the correct order. Before installing the wires put a small amount of dielectric grease inside the spark plug boot. Check to see if the boots are brittle or cracked, and if there is corrosion on the connector inside the boot. If any of these conditions are present, the spark plug wire should be replaced.
Start the engine. If it misfires or idles roughly, the wires are crossed or not connected to the plugs correctly. Check the firing order and connections closely.

If you have any questions regarding your Autolite spark plugs, call Autolite Answers(SM) to consult with one of our technicians. Autolite Answers 855-200-5200

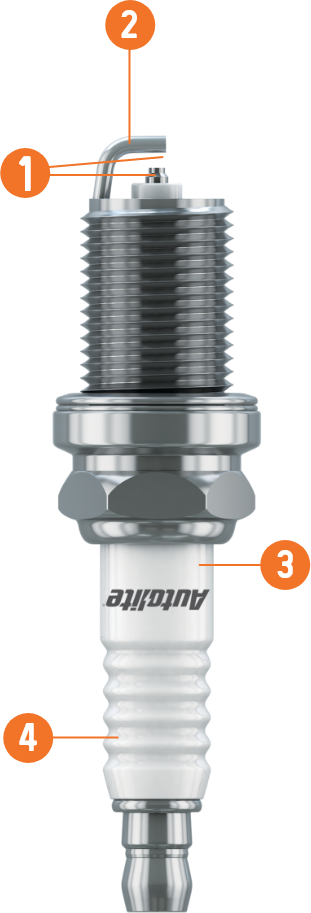

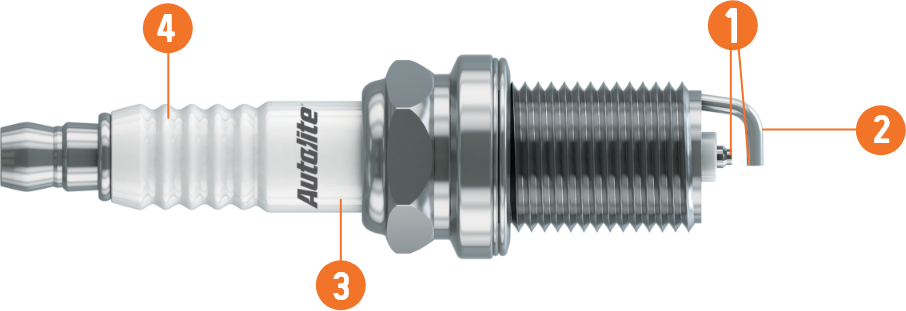

TECHNOLOGY

High nickel alloy side electrode
Full platinum tips
Necked-down center electrode
Full copper core center electrode

PARTS

A quick reference to Double Platinum's part numbers are listed below. Autolite provides OE-equivalent quality and performance to over 95% vehicle applications. If you don't see the part number for your vehicle, don't fret! Our Parts Finder allows quick access to the right part for your engine.

APP5325
APP5224
APP3923
APP5263
APP3924

APP104
APP5245
APP5702
APP5701
APP606

APP5363
APP103
APP605
APP5863
APP5364
