Iridium XP

Autolite® Iridium XP Spark Plugs

When you're passionate about performance, you need a technologically advanced plug. Autolite Iridium XP utilizes an iridium-enhanced finewire and proprietary platinum sidewire for improved durability* and a more focused ignition for better overall ignitability** providing optimum performance. Now with a lifetime limited warranty.

*Compared to 0.8mm finewire, multi-electrode design and standard plugs
**Compared to average of other premium brands .

Find Store

Parts Finder

Save Product

FEATURES & BENEFITS

Better durability* and a more focused ignition for optimum performance.
Iridium enhanced 0.6mm finewire design for optimal durability and performance
Platinum protected ground wire for maximum efficiency in all ignition types including DIS systems
V-trimmed ground electrode for improved ignitability
Limited lifetime warranty

*Compared to 0.8mm finewire, multi-electrode design and standard plugs

Click on the link below to check out our Spark Plug Metallurgy Comparison Chart.

Compare Now

INSTRUCTIONS

Autolite highly recommends that you consult with your vehicle’s owner’s manual for any specific instructions for changing the spark plugs. Engines can vary widely by make and model. These instructions should be considered for general guidance only.
Replacing spark plugs can be a simple job, if you take things one step at a time. Given a basic understanding of mechanical matters, here's a guide to the proper procedures in changing spark plugs.

Coil-on Plug

Unplug and remove ignition coils. Inspect coil boots for cracking or oil staining. If you have oil in the spark plug wells or on the boots, the valve cover gasket is leaking and must be replaced.
Loosen each spark plug so it can be removed. Clean the seat area with a blast of compressed air or with a shop vac, use proper PPE. This prevents dirt from falling into the combustion chamber when the old plugs are removed.
Remove the plugs and line them up in cylinder order. Inspection of the firing ends of the plugs can identify a number of engine problems that may need correction. (illus. 3)
Check and set the gap on new plugs as recommended in your owner's manual or a Spark Plug Catalog. Use a round feeler gauge to measure the gap between the center and ground electrode. The gauge should pass through snugly but easily. If it's too loose or too tight, reset the gap.
Screw new plugs in by hand until tight. Use a torque wrench to tighten the spark plugs following the manufacturer's recommendations, or refer to a torque chart in the Spark Plug Catalog. If you don't have a torque wrench, see the bottom of the torque chart for hand tightening recommendations.
Replace the coils Before installing the coils, put a small amount of dielectric grease inside the spark plug boot. Check to see if the boots are brittle or cracked, and if there is corrosion on the connector inside the boot. If any of these conditions are present, the spark plug boots should be replaced.
Start the engine. If it misfires or idles roughly, the wires are crossed or not connected to the plugs correctly. Check the firing order and connections closely.

If you have any questions regarding your Autolite spark plugs, call Autolite Answers(SM) to consult with one of our technicians. Autolite Answers 855-200-5200

Distributorless Ignition System (DIS)

Carefully remove the spark plug wires. Grasp the plug wire boot, twist about one-quarter turn to break the seal, then lift straight off. Use plug boot pullers if the boot doesn't break free easily. Number plug wires with tape as you remove them to avoid crossing them. (illus. 1)
Loosen each spark plug so it can be removed. Clean the seat area with a blast of compressed air or with a shop vac, use proper PPE. This prevents dirt from falling into the combustion chamber when the old plugs are removed. (illus. 2)
Remove the plugs and line them up in cylinder order. Inspection of the firing ends of the plugs can identify a number of engine problems that may need correction. (illus. 3)
Check and set the gap on new plugs as recommended in your owner's manual or a Spark Plug Catalog. Use a round feeler gauge to measure the gap between the center and ground electrode. The gauge should pass through snugly but easily. If it's too loose or too tight, reset the gap.
Screw new plugs in by hand until tight. . Use a torque wrench to tighten the spark plugs following the manufacturer's recommendations, or refer to a torque chart in the Spark Plug Catalog. If you don't have a torque wrench, see the bottom of the torque chart for hand tightening recommendations.
Replace spark plug wires in the correct order. Before installing the wires put a small amount of dielectric grease inside the spark plug boot. Check to see if the boots are brittle or cracked, and if there is corrosion on the connector inside the boot. If any of these conditions are present, the spark plug wire should be replaced.
Start the engine. If it misfires or idles roughly, the wires are crossed or not connected to the plugs correctly. Check the firing order and connections closely.

If you have any questions regarding your Autolite spark plugs, call Autolite Answers(SM) to consult with one of our technicians. Autolite Answers 855-200-5200

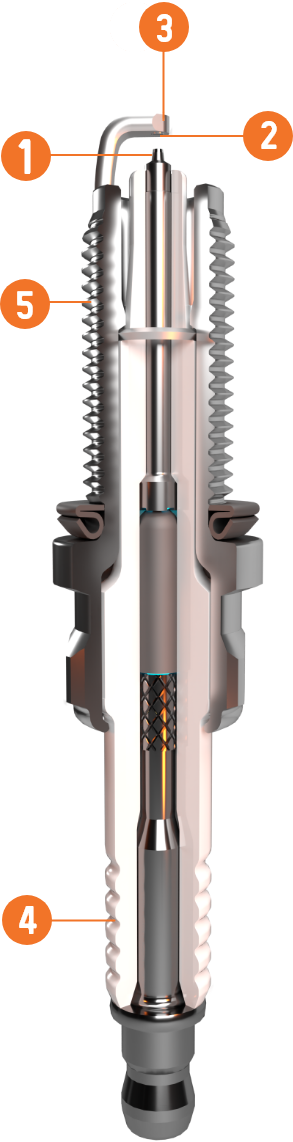

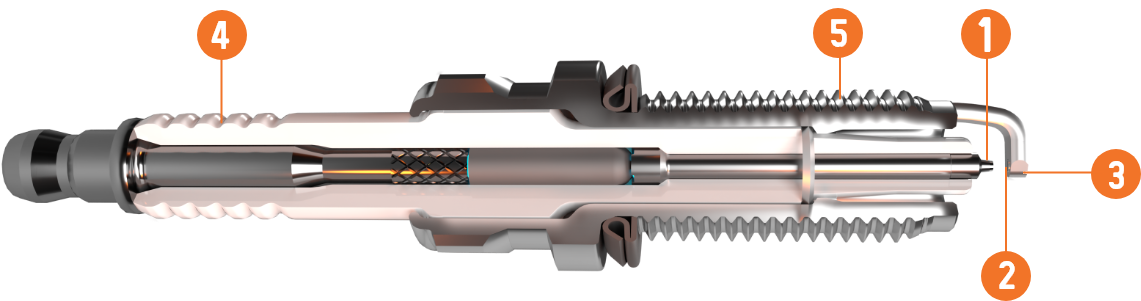

TECHNOLOGY

Iridium-enhanced center electrode
Proprietary, platinum sidewire technology
0.6-mm finewire design
Nickel-plated shell

PARTS

A quick reference to Iridium XP's part numbers are listed below. Autolite provides OE-equivalent quality and performance to over 95% vehicle applications. If you don't see the part number for your vehicle, don't fret! Our Parts Finder allows quick access to the right part for your engine.

XP5325
XP5224
XP3923
XP5263
XP5683

XP103
XP104
XP5245
XP5702
XP5363

XP605
XP5863
XP5701
XP606
XP3924
